Product Details:
Payment & Shipping Terms:
|
Type: | Cargo Trailer/semi-trailer | Loading Capacity: | 80T |
---|---|---|---|
Material: | Steel | Size: | (8500-11500)*2500*3700mm |
Landing Gear: | Standard 28Ton | Brake System: | ABS (optional ) |
High Light: | 80 Ton dump trailer,semi tipper dump trailer,36 ft dump trailer |

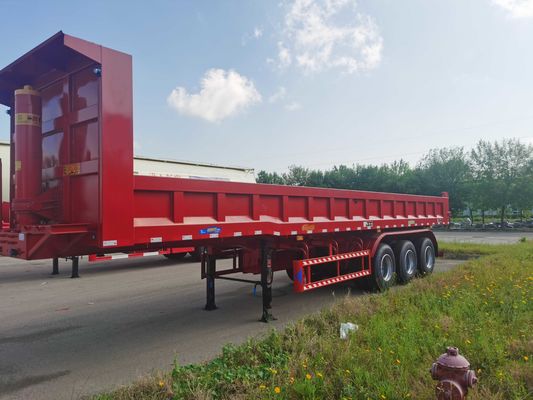

11.5 metre Rear Dump Tipper Trailers for sale
The 11.5 meter tri-axle rear dump trailer is a versatile, stable and reliable cargo transportation tool that can meet a variety of heavy-duty cargo transportation needs. The trailer is made of sturdy structure and high-quality materials for good durability and long service life. It can withstand the challenges of various road conditions and working environments to ensure reliable transportation. The trailer is suitable for a wide range of industries including construction, logistics and mining. Whether you are transporting construction materials, bulk goods or other large cargoes, it is up to the task.
Type | Semi-Trailer |
Max Payload | 80T |
Place of Origin | Shandong, China |
Use | Truck Trailer |
Material | Steel |
Size | (8500-11500)*2500*3700mm |
Tare weight | About 9000-14000KG |
Product name | Rear dump semi trailer |
Total volume(m3) | 20-50 m3or less than 80tons |
Side wall | 4mm-8mm |
Bottom platform | 5mm-10mm |
Lifting system | Full set of Hydraulic Lifting Cylinder |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 |
Axle | 3axles |
Landing gear | 28 ton |
King pin | JOST 2.00 or 3.5 inch |
Main beams | Height:500mm, top flange is 8-16 mm,middle web is 5-8mm,bottom flange is 10-18 mm |
Axle | 3 axles, 13T/16T/20T,FUWA/BPW/YUETONG brand |
Landing gear | FUWA/BPW brand |
Suspension | Mechanical suspension (Germany Type or America Type) or Air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Brake System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Electrical system | Voltage: 24 Volt Receptacle: 7 way socket standard, China Front lamp: White Side marker lamp: White & Red |
Tool box | 1 pc, or according to the requirement of the buyer |
Painting | Compete Chassis sand blasting to clean rust,l coat of anticorrosive prime,2 coats of final paint |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7 )For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
