Product Details:
Payment & Shipping Terms:
|
| Type: | Semi-Trailer | Max Payload: | 28500kg |
|---|---|---|---|
| Material: | Steel | Size: | 13000*2500*3800mm |
| Axle: | 3 Axles 13 Ton Fuwa /BPW (optional) | Landing Gear: | 28T |
| High Light: | cement bulk truck trailer,cement bulk truck,cement bulker trailer for sale |
||

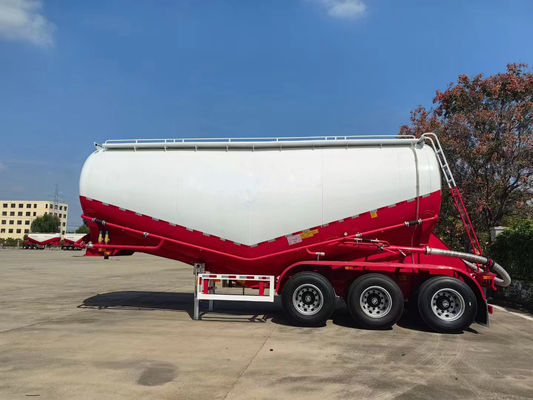

High quality 45 cubic metre bulk cement Fly ash tanker trailer
With a volume of 45 cubic meters, this tanker trailer can carry large quantities of cement and fly ash. The exact load capacity depends on the density of the material, but is usually sufficient for high intensity transportation. The trailer is also equipped with an efficient unloading device and conveyor system for quick and easy unloading. The unit can be adjusted and customized to ensure efficient and smooth unloading of cement and fly ash from the trailer.
|
Type |
Semi-Trailer |
| Max Payload | 28500kg |
| Place of Origin | Shandong, China |
| Use | Truck Trailer |
| Material | Steel |
| Size | 13000*2500*3800mm,according to customer's requirement |
| Total Weight | 39950 kg |
| Rated Load | 28500 kg |
| Tare Weight | 9000 kg |
| Volume | 45m3 |
| Compartment No & Valve | 5 isolated compartments with loading and unloading valves, loading and unloading pump. |
| Wheel Base | 7000+1310+1310 (mm) |
| Tyre Specifications | 11.00R20-12PR 12R22.5-12PR |
| Number Of the Tyres | 12 |
| Axle Brand | FUWA (BPW optional) |
| Number Of the Axles | 3 |
| Axle-load | 24000 kg |
| King Pin | 50#/90# |
| Landing Leg | 28ton |
| Pieces of leaf-spring | 10(8) |
| Suspension |
independent stamping steel rigid suspension (or air suspension) |
| Departure Angle | 14.8 |
| Front/Rear Overhang | 2080 mm |
| Outside Dimensions (mm) | 13000X2500X3800 (LxWxH) |
| (Interior )Tank shell Dimensions (mm) | 12800×2500×2300 (LxWxH) |
| Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
| Brake System | Dual line braking system /ABS |
| Brake Air Chamber |
Six double chamber |
| Electrical |
24V 7 ways(7 wire harness) |
| Usage | The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products |
| Characteristics |
1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing |
| Other Specifications | The sealing head of the tank shell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
