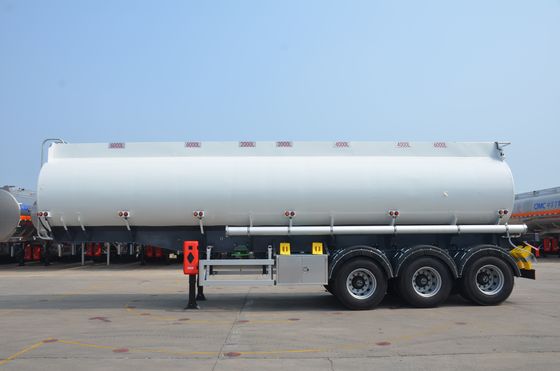

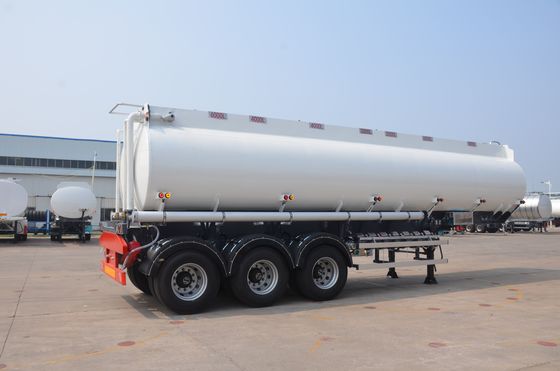

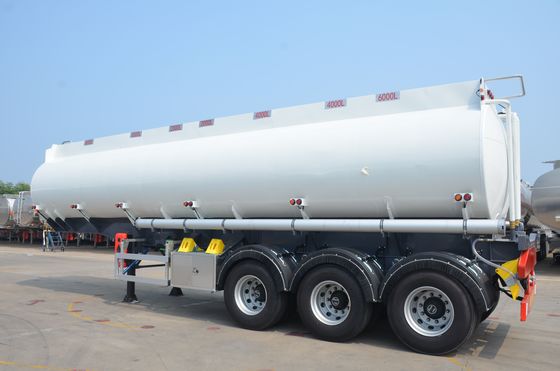

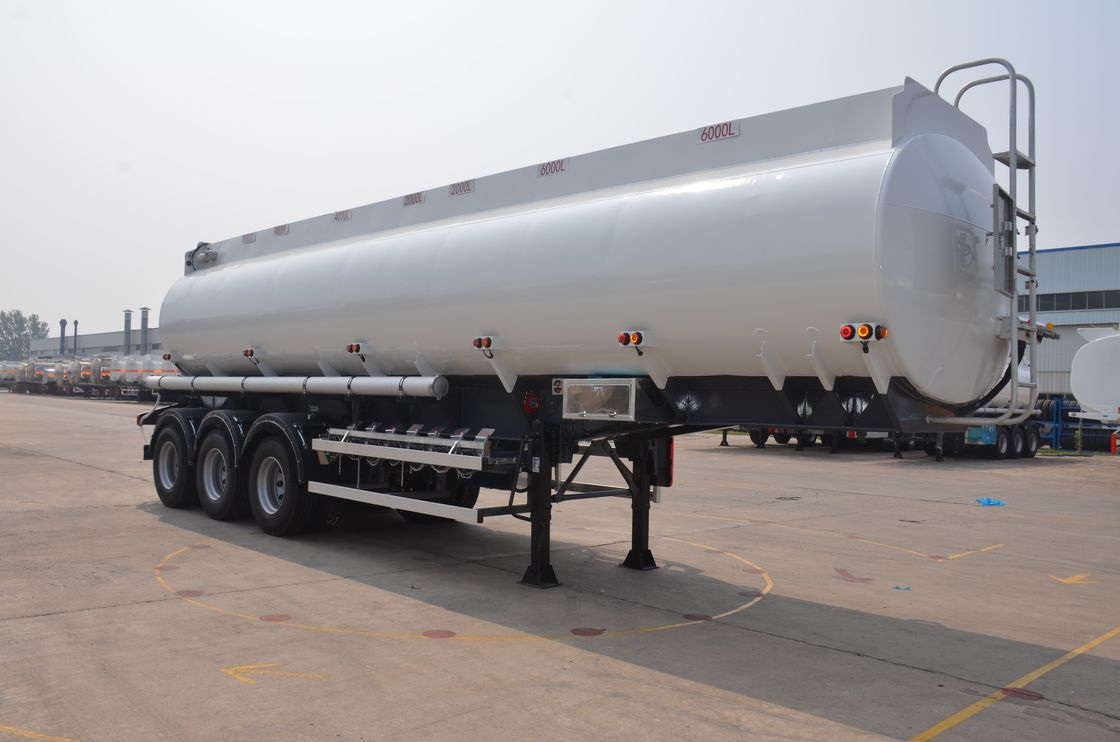

10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer

10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer

10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer
10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer

Large Image :  10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer Get Best Price

Product Details:
Place of Origin: Shandong, China
Brand Name: FIve Continents
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $21000
Delivery Time: 15 working days
Supply Ability: 500 per month
Detailed Product Description
Type: Fuel Tanker Trailer Max Payload: 20000-25000 Kg
Material: Steel Overall Dimension: 11500*2500*3800
Volume: 40m3 Suspension System: Mechanical
Landing Gear: 28t Heavy Duty Landing Gear Painting: Polish With Wax Before Shipping
High Light:

10000 gallon tanker trailer

,

diesel tanker trailer

,

diesel fuel tank trailer

    40000 45000 50000 litres Diesel Oil Petroleum Tank Fuel Tanker Semi Trailer

Our tanker semi-trailer is carefully designed to ensure the safe and reliable transportation of a wide range of liquid products, including petroleum, fuels, chemicals and more. It boasts a sturdy construction and specialized tank design that meets the highest industry standards for safety and leak-proof performance. It is also equipped with advanced safety features such as anti-rollover device, emergency shut-off valve and overload protection system, which ensures that your cargo remains intact throughout the transportation process. Our tanker semitrailers are designed to optimize loading capacity, reduce risk and streamline logistics operations for liquid cargo transport, giving you peace of mind. Trust our industry-leading solutions to transport your valuable liquid products efficiently and safely.

                                                     Essential details

Use

Truck Trailer

Type

Semi-Trailer

Material

Steel

Size

11500*2500*3800mm

Max Payload

20000-25000 kg

Place of Origin

Shandong, China

Brand Name

CUSTOM

Product name

Fuel Tanker Trailer

Axle

3

Volume

40m3

Compartment

8

Suspension System

mechanical

Steel spring

10/10/10

Accessories

one standard tool box

Tire

12R20

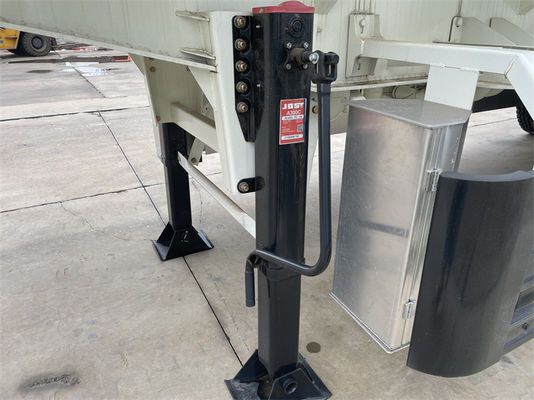

Landing Gear

28t Heavy Duty Landing Gear

Painting

polish with wax before shipping

                                                  Product Paramenters

Overall Dimension

11500*2500*3800

Tare weight

10500kg

Tank body

Q235/4mm steel

End plate

Q235/6mm steel sheet

Axle

3 axle 13T Fuwa Brand

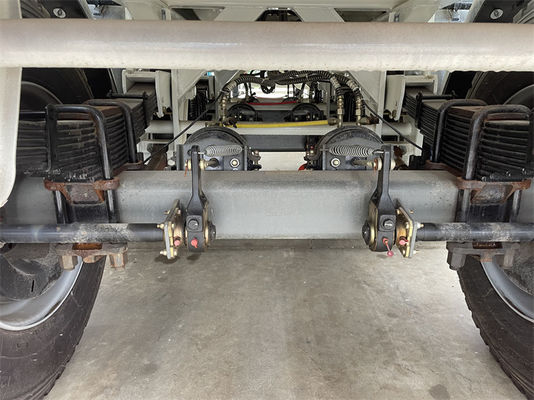

suspension system

Mechanical suspension

steel spring

10/10/10 leaf spring suspension

Manhole cove

500mm manhole cover 8 sets

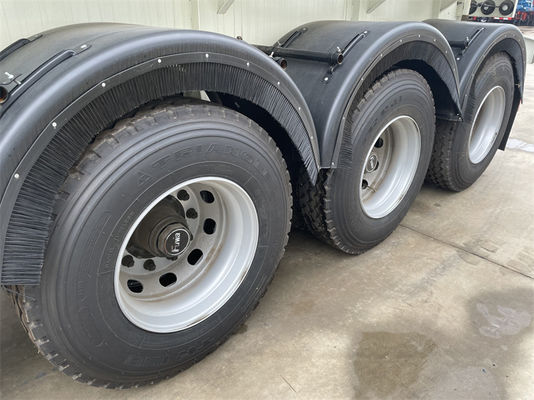

Tire

12.00R20 12pcs

Rim

9.0,12pieces

Discharge valve

4"disc valve,8pcs

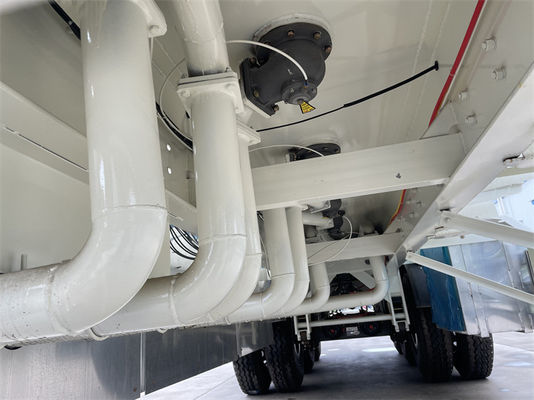

Discharge pipe

4"seamless steel tube,8pcs

Spare wheel bracket

2"bolt-in kingpin,Landing Fuwa brand two-speed,manual operating,28T

Tool box

one piece

Painting

complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

Main beams

opting for high tensile steel Q345B welded by automatic submerged-arc process

Electrical system

voltage:24v Reception:7 ways(7 wire harness)

Tail lamp with turn signal,brake light&reflector,side lamp etc.
one set 6-core standard cable

10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 010000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 110000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 210000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 3

10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 4

Alcohol and chemical fuel storage tanker trailers are made of stainless steel and have a thickness of 4mm-5mm.All kinds of hydrochloric acid, sulfuric acid and lye oil storage tankers are made of plastic with a thickness of 12mm - 22mm. There are multiple anti-wave separators in our oil fuel storage vacuum tank trailer. The high-pressure gas leak detection is used to make the tank have high strength, stable center of gravity, and safe and stable vehicle transportation.

10000 Gallon 8000 Gallon Diesel Fuel Tank Trailer Oil Petroleum Semi Trailer 5

PACKING AND SHIPPING



We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
